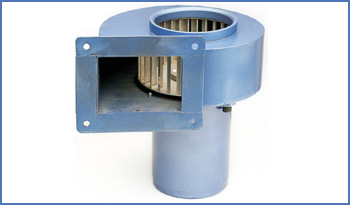

Centrifugal Blower CB - 121255, Centrifugal Blowers, Manufacturer, India

	• Continuos Rating, Aluminium Impeller. • Rotates in Counter Clock Wise Direction. • Sheet Metal Fabricated MS body. • With Die Cast Aluminium Body.

Specifications :

Output Power W

Model

Frequency Hz

Supply Voltage Volt

Current A

Max. Air Flow. CFM

Max. Static Presure
Pa	mm of H₂O

Rated Speed RPM

Capacitor uF

CB 121255 W

110 V Single Phase

0.90

250

300

2600

6.0

CB 121255 X

230 V Single Phase

0.40

250

285

2600

1.85

CB 121255 Y

230 V Three Phase

0.51

250

300

2600

-----

CB 121255 Z

230 V Three Phase

0.20

250

285

2600

-----

Centrifugal blowers move air by means of the centrifugal force generated by rotating a cylindrical impeller. Used for applications where increased air pressure, increased static pressure, high airflow is required. Centrifugal blowers have a small outlet, which concentrates air in a single direction, and are therefore suitable for local cooling .

Wiring Diagram

Wiring diagram for Single Phase Blower
Ensure that the impeller is rotation in anti clockwise direction, air flow is maximum.

Standard Single Phase Blower	SR Type Single Phase Blower

Short Black wires and connect the capacitor as shown. To change the direction, connect the supply wire from White to Red.	Red wires are for running winding and Black wires for Starting winding. To change the direction, interchange Black wires or Red wires.

Wiring diagram for Three Phase Motors

Star Connection	Delta Connection

For the Voltage 415 VAC, 3-Phase Supply, Wires are connected as shown in the fig. Short Blue, Black and White and then insulate it carefully. To change the direction, interchange any two wires between U, V & W.	For the Voltage 230 VAC, 3-Phase Supply, Wires are connected as shown in the fig. Short Blue & Red, Black & Yellow, and White& Red as per the fig. Shown. To change the direction, interchange any two wires between U, V & W.
