Electromagnetic Brake Motor 180 watt, Ac Motors, Manufacturer, Pune, India

	Continuous Rating with Frequent Start Stop. Load Holding & Minimum Overrun. Works when Power Off (Brake-Activated), By its Failsafe Braking Action. Fitted at the Back side Of the Motor. Rotates in Clockwise or Counter Clockwise Direction. Terminal box or Flying Lead Wires for Connections.

Specifications :

Output Power W	Model	Frequency Hz	Supply Voltage Volt	Current A	Starting Torque Kg.cm	Rated Torque Kg. cm	Rated Speed RPM	Capacitor
180	90 4G EW 180	60	230 V Three Phase	1.21	12.4	12.1	1500	-----
180	90 4G EX 180	50	230 V Three Phase	1.48	15.7	15.9	1350	-----
180	90 4G EY 180	50	415 V Three Phase	1.50	15.7	15.9	1500	-----

Gearmotor Torque Table :

The maximum permissible torque is 200 kg.cm

50Hz Unit : kg.cm
RPM	500	416	300	250	200	166	120	100	83	60	50	41	30	25	20	16	15	12.5	10	8.3
Gear Ratio	3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
Output Torque	36	42	60	88	108	136	160	194	200	200	200	200	200	200	200	200	200	200	200	200

60Hz Unit : kg.cm
RPM	600	500	360	300	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10
Gear Ratio	3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
Output Torque	29	35	48	56	72	88	106	130	155	97	116	195	200	200	200	200	200	200	200	200

Gear Boxes are sold separately.
A Sky blue colored background indicates gear shaft rotation in the same direction; a Brown background indicates rotation in the opposite direction as the motor shaft. The speed of the Gear Motor is calculated by dividing the motor’s synchronous speed (50 Hz; 1500 RPM & 60 Hz; 1800 RPM) by the ratio.

The actual speed is 2~20% less than the displayed value, depending upon the load size. Characteristics, specifications and dimensions are subjected to change without prior notice.

Dimensions :

180 Watt : AC Geared Motor with Terminal Box

180 Watt : Round AC Induction Motor With Terminal Box

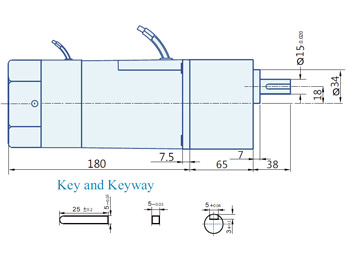

180 Watt : AC Geared Motor With Lead wires

Wiring Diagram

Wiring diagram for Single Phase Motors
	When Sw1 is switched ON, Electromagnetic Brake is released & motor starts rotating. When Sw1 is switched OFF then Electromagnetic Brake will be applied stopping the motor immediately & holding the load. Apply voltage on the blue brake lead wires only, to release the Electromagnetic Brake. To change the direction of rotation, flip Cw to CCW.

Change the direction of the motor only after it stops rotating, if the attempt is made during rotation, the motor may ignore the reversing command or change the direction after some time.
